Light Material LBS Sleeve Drum Shells With 900mm Diameter

  • 1
  • 2
  • 3

Brand Name : LBS

Model Number : S-DN14-D900-L1250

Certification : ISO9001 GJB

Place of Origin : Shijiazhuang,Hebei

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 sets per month

Delivery Time : 10-20 work days

Packaging Details : standard wooden case

Name : LBS sleeve or LBS shells OR

Material : black nylon

weight : light

dimensions : φ900 L=1250mm

function : make rope ordered arrangement

OEM/ODM : Yes

Contact Now

Light Material LBS Sleeve Drum Shells With 900mm Diameter

Product Description:

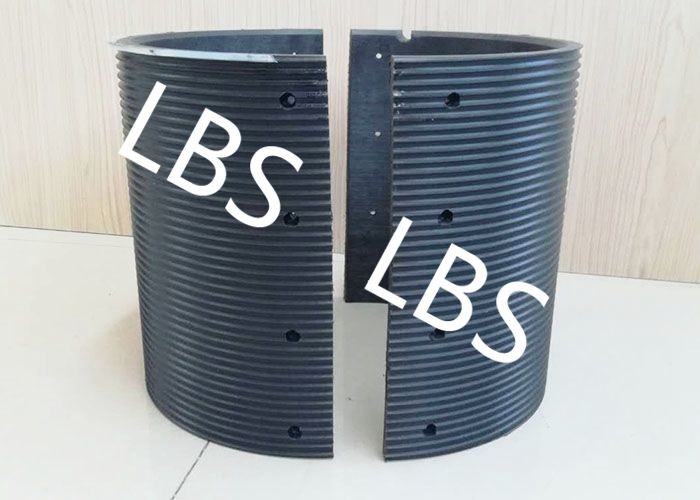

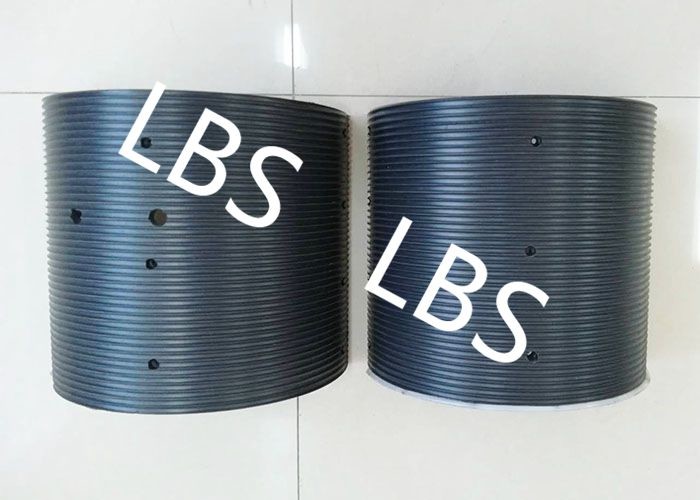

The LBS Sleeve comes in a half-split design, making it easy to install and remove. It also allows for customization in terms of size, making it a versatile product suitable for any winch drum.

The LBS Sleeve has grooved sleeves, which provides a better grip on the rope, reducing slippage and improving the overall performance of the winch drum. This makes it an ideal product for heavy-duty applications where maximum performance is required.

The LBS Sleeve is certified with ISO9001, CCS, and ABS, ensuring its quality and safety. It is a product that has undergone rigorous testing and quality control measures to ensure that it meets the highest standards.

The LBS Sleeve also has a rope entry direction that can be customized to either left or right. This feature is particularly useful for winches that have a specific rope entry direction requirement.

The LBS Sleeve is also known as a drum sleeve protector. Its main purpose is to protect your winch drum from wear and tear caused by the rope. It is an essential product for any winch drum cover, as it can extend the life of your winch drum and improve its overall performance.

In summary, the LBS Sleeve is a high-quality product made with grooved sleeves, designed to improve the performance of your winch drum while also protecting it from wear and tear. It is produced in a CNC center, ensuring its durability and reliability. It is a versatile product suitable for any winch drum, with the option for customization in terms of size and rope entry direction. It is certified with ISO9001, CCS, and ABS, ensuring its quality and safety.

Breif introduction:

It is very expensive for drilling customers to customize a suitable drum for winch. So we design a kind of cover for drum,which is called LBS grooved shells or LBS groove sleeves. We divide it into two parts that could be installed on the drum and instead of making a whole drum.

We can use a variety of materials to manufacture the sleeves. If the customer need a light material,you can choose nylon material.

Rapid customization:

  • material
  • the dimension of drum
  • rope diameter
  • pls provide us detailed drum drawing if possible

LBS grooved sleeves advantages:

1. The customer can choose LBS groove or helical when you need to mount a set of slleves on a unslotted drum.

2. Make the rope ordered arrangement and reduce mess& biting problems in the processing of spooling

3. The cost of sleeves is lower than a drum.

4. easy for installation.

Work flow:

1. The customer provide us with detailed parameters

2. We will design a drawing for customer to confirm

3. Discuss details and ready to produce

4. Payment

5. Ready product materials

6. produce

7. finished and inspection

8. delivery

Service content:

A: Pre-sales Service

1. Provide technical advisory services to assist customer in selection;
2. Provide customers with the necessary technical information, drawings, etc;

B: Sales Service

1. According to the relevant technical parameters, design drawings, or to provide customers with drawings of professional review, to provide the best solution and drawings.

2. Answers questions about specifications, performance, parameters, etc, and recommend the most appropriate solution.

3. Immediately after signing the contract, we make production planning for timely delivery.

C: After-sales Service

1. Provide technical advice during installation process;

2. In warranty period, if a quality-related problem occurs in normal use, please send a written description of the problem to us. We will respond within 24-48 hours.

3. Even if the warranty has expired, we are still glad to solve problems that are not due to improper use for you. All repairs will be billed at cost, and for long term, we supply spare parts at favorable price.

Light Material LBS Sleeve Drum Shells With 900mm Diameter

Light Material LBS Sleeve Drum Shells With 900mm Diameter
